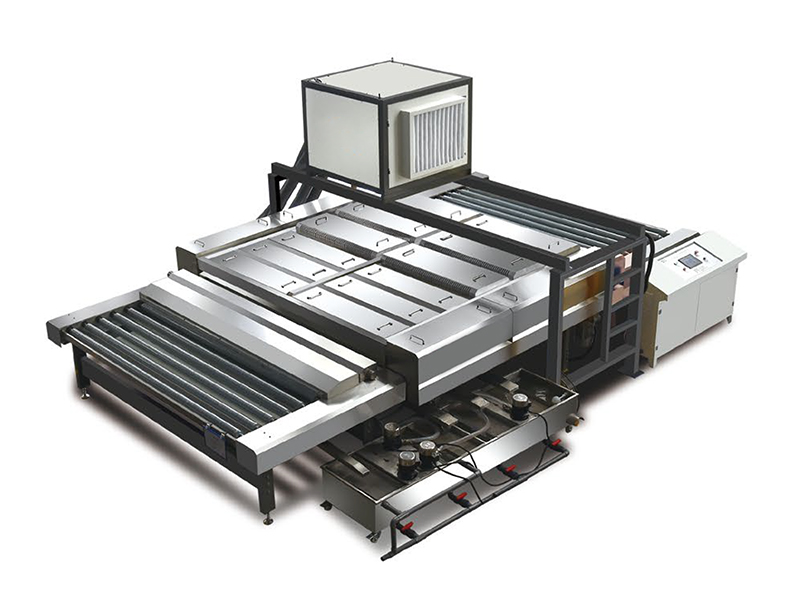

主要性能特点

（Main Features）

1. 传送胶辊直径为75mm，胶辊经久耐用。

2. 主传动采用伞齿轮传动，变频调速、数字显示、清洗段毛刷辊转动分别由上、下毛刷由三组电机分别驱动，上部两组，下部一组电机通过皮带带动毛刷转动；

3. 清洗段和风干段可整体电动升降到400 mm，配有高强度螺杆升降机构，操作简单，方便设备的维护、保养和检修。

4. 毛刷(150mm)三对，轴头采用不锈钢材料加工配置、可洗硬/软LOW-E、普通镀膜和阳光镀膜玻璃。

5. 适应于对清洗风干效果要求极高的玻璃钢化炉、丝印线、夹层线等设备的配套使用。

1. Transmission rollers adopt diameter of 75mm durable rubber rollers.

2. Main transmission adopts bevel gear drive with frequency control and digital display. The upper and lower brushes are driven separately by three motors（upper two, lower one) through belt driving

to ensure smooth rotation speed with high cycle life.

3. Top frame of both washing and drying sections equipped with high strength screw can be elevated by 400mm as a whole, easy to operate, for the convenience of cleaning and maintaining.

4. Three pairs of brushes(150mm), of which shafts are processed with stainless steel material, can wash hard and soft LOW-E glass, normal coated glass and sunshine coated glass.

5. It is especially suitable for supporting use of glass tempering furnace, screen printing line, laminating line and other equipment on highly demanding for cleaning and drying effect.

技术参数

（Main technical parameter）

最大玻璃宽度（Max width of glass）：2500mm

最小玻璃规格（Min length of glass）：400×400mm

玻璃厚度（Glass thickness）: 3~19mm

玻璃传送速度（Glass conveyor speed）：0.6~6.5m/min

台面高度（Height of operation platform）：880mm±20

总功率（Total power）：29.95KW

电源（Power）：380VAC 50HZ

重量（Weight）：About 4200kg

外形尺寸（Dimension）：6590×3800×3100mm
