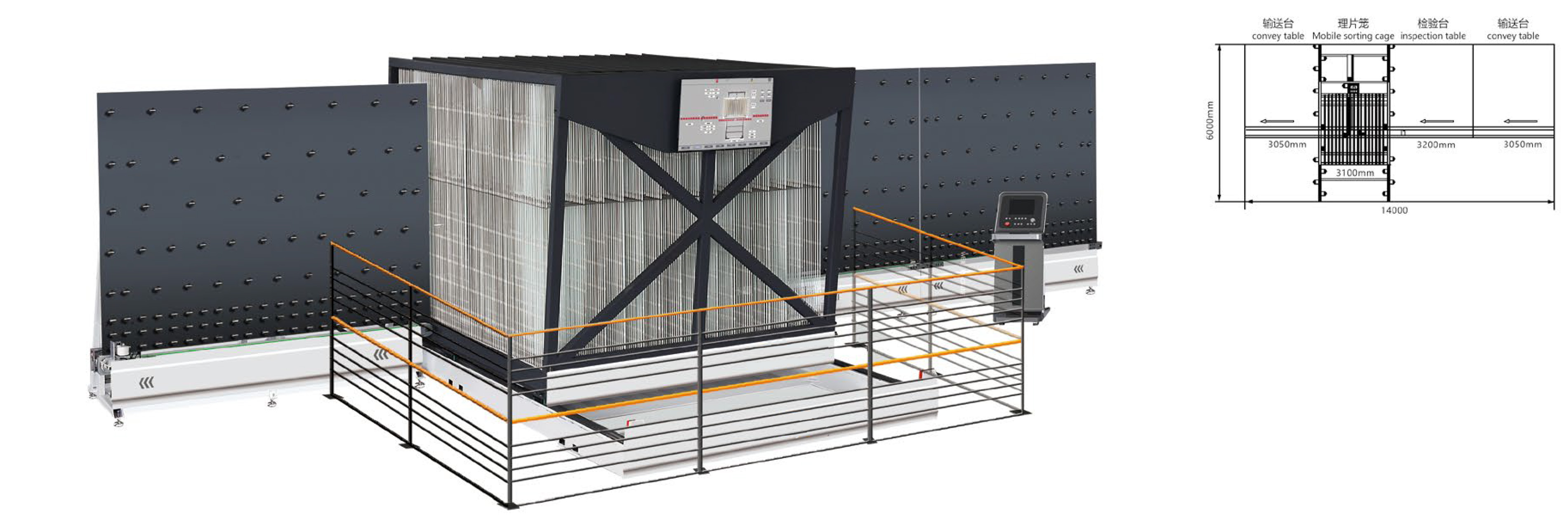

1.用于中空玻璃自动分拣配对，由立式输送台、立式检验台、移动理片笼以及立式输送台四部分组成。

2.玻璃通过立式输送台运送到检验台，系统能快速准确检验出玻璃尺寸，然后入库，经过智能比对后按规则配对出片。

1.It is used for automatic sortin9 and matching of insulating gla!is.lt consists of four parts: verticalconveying table, vertical inspection table, mobile sorting cage alid vertical conveying table.

2.The glass is transported to the irspection station through the verticalconveyor table.The system can inspect theter intelligent comparison, it will be matchedglass size quickly and accurately,and then put it into the warehouse.Afand output according to the rules.

性能特点

（Main Feature）

1.完全取代了人工配片和贴标、撕标过程，清理人工配对产生的错误。

2.用于中空线之前，生产效率可提高25%-30%。

3.支持扫码功能，省去检验台环节，直接扫码确定玻璃配对信息。

4.减少人员需求:操作简单，降低对人员技能要求。只需一人操作（摆放玻璃架），配合机械手上下片，无需人员值守。

5.一笼多片：相对市场同品，理片笼可进行1笼1片，或1笼2片的存储模式，最多可连续装载180片（玻璃长度小于1350mm）

1.It completely replaces the process of manual glass matching,labeling and tearing,avoiding errors caused by mqnual glass matching

2.It is used in front of insulating glass line,the production efficiency can be inceased by 25%-30%

3.Optional:support the code scanning function,save the inspection station steps,and directly scan the code to confirm the glass pairing information.

4.Reduced personnel requirements:It is easy to operate and reduces the skill requirements for matching workers.

Only need 1 worker to operate(place glass racks,replace empty racks),cooperate with macipulators to unload and unload glass sheet,and no workers are required to be on duty.

5.Multiple glass pieces in one cage:Compared with the similar products in the market,our sorting cage system can store 1 piece or 2 pieces of glass in one cage,and can load up to 180 pieces of glass continuously(glass length less than 1350mm)

技术参数

（Main technical parameter）

1.电压（Power source）:AC 380V 3ph 50HZ

2.功率（Total power）:3.75kw

3.总重量（Total weight）:2600kg

4.玻璃厚度范围（Glass thickness）:3~10mm

5.联线功能（Connection function):12kw

6.倾斜角(Tilt angle）:840

7.工作高度（Working High）:550±30mm

8.笼体移动速度（Movement speed）:≤10m/min

9.传输速度（Transmit Speed）:≤45m/min

10.压缩空气(Compressed air）：800L/min

11.流量（Flow volume）:0.8m3/ min

12.气压(Air pressure）：≥8kgf/cm2
